The milk homogenizer machine is among the important machines used to make the end products of milk and other products in the dairy industry more uniform. The scope of this article will cover in detail the principles of operation, technologies employed and the advantages brought about by milk homogenization. To achieve this, we will examine the methods and benefits of homogenization, which explains why this procedure is regarded as crucial in properly manufacturing dairy products. Also, we will look at how homogenization helps preserve products, protect consumers, and influence the market. With this extensive overview, readers will be able to understand how milk homogenizers improve product quality and help achieve greater efficiency and creativity in the dairy industry.

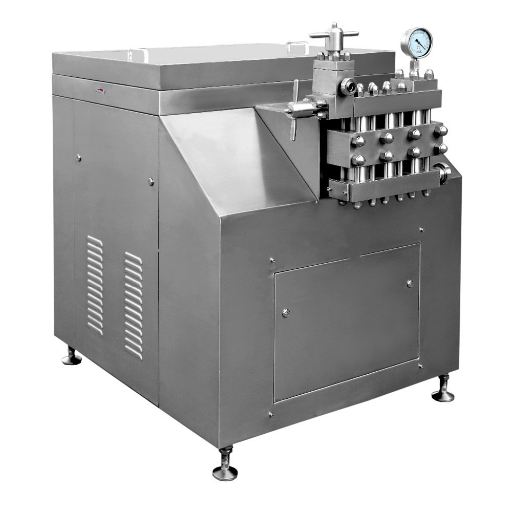

What is a Milk Homogenizer Machine?
An Outline of a Milk Homogenizer Machine.
At very high pressure, the milk homogenizer machine is a device that is mostly used in the dairy industry, enabling the breakdown of the fat globules to facilitate an even dispersion of fats within the fluid. This action ensures that no cream separates by floating to the top, leaving a well furnished and consistent product quality. Homogenizers utilize the principle of making high-pressure milk issue through a narrow space, which causes the fat globules to break in size, hence spacing out. This technique improves not only the physical form and the appearance of milk but also the taste and the period at which the milk remains good. Normal sequential parts of a milk homogenizer are a high-pressure pump, homogenizing valve, and cooler, which systematically integrate together to promote the probable degree of homogenization.
How does a Milk Homogenizer Machine function?
As such, to understand how a milk homogenizer machine works, it is necessary to examine the processes from a first-person point of view and assimilate the information from the dominant sites in the industry.
In my case, I carry out a series of activities with a milk homogenizer machine and it all begins with taking the raw milk and putting it into the unit’s high-pressure pump. This pump is very important since it creates pressure that is required in forcing the milk through the valve that homogenizes the milk. Milk passes through a 400 mesh homogenizing valve and upon exiting this, there is a very narrow gap that creates very high velocity and pressure area. This extreme pressure pushes the milk fat globules into high pressure and causes them to crash and fracture into little uniform dimensional fats.
The homogenizing valve has a number of constrictions and separation units of the channels, which cause turbulence and shear force that further decomposes the fat globule. Upon exiting this high-pressure area, because of the emulsions that have fine dispersions of fat particles, oil is prevented from separating and floating forming skin, which makes the final product always uniform. In the course of this exercise, the cooling systems of the machine are increasingly important in regard to the upkeep of suitable temperatures that must have the quality of milk.
This method not only produces a milk product with better organoleptic properties but also prolongs the durability of the product x, as it helps control spoilage microbes and oxidation processes. The milk homogenizer machine subjects the final product to such operation, allowing for the optimal concentration of active ingredients that are visually appetizing and also more attractive to consumers.
Classification of Homogenisers in Use in Dairy Cos.
As we discuss the types of homogenizers found in the dairy subsector, it would be worthwhile distinguishing the objectives of the universal homogenizers regarding their mode of operation and their use in the dairy economy.
High-pressure homogenizers are the most common type operated in the dairy industry. As described, these machines apply high-pressure pumps that push the milk through the homogenizing valve at pressures between 100 and 250 MPa. The mixing and fluid stream forces the fat particles to be distributed uniformly in this process.
The other type is rotor-stator homogenisers, which utilize mechanical shear forces applied to their rotors and stators, which spin in a concentric fashion at high speeds. This type of rotor-stator is widely used because it effectively homogenizes both solid and liquid mixtures and can be applied to many dairy emulsions and suspensions.
Further, ultrasonic homogenizers depend on ultrasonic waves to apply cavitation in the milk, causing the collapsing bubbles and the resultant shear forces to disintegrate the milk fat globules. This procedure is quite efficient but is usually restricted to small volumes or special products due to energy and other operational constraints.
Because I comprehend these different types, I am able to choose the most suitable homogenizer that will satisfy the given processing conditions and produce adequate quality of the final product.
Why is Homogenization Important in Milk Processing?
The Importance of Homogenization in the Food Industry
Through my investigations of the relevant websites, I can conclude that the homogenization method is significant to the quality and safety of dairy foods. Homogenization prevents rising of cream to the surface by dispersing the fat globules uniformly in the entire mass of the milk. This approach significantly improves the physical properties and sensory attributes of dairy products and, at the same time, reduces their spoilage potential, increasing their longer shelf life.
Specific technical parameters applicable to the homogenization process include the following.
- Pressure: The working pressures of these equipment range from 100 to 250 Mpa for high-pressure homogenizers and these conditions are created in the geometry by mixing turbulence and shear forces which facilitate the required homogenizing of fats.
- Temperature: Milk is homogenized at temperatures between 50 and about 70 OC for microbiological safety and satisfactory destruction of fat globules.
- Flow rate: The flow rate of the milk through the homogenizer also affects the efficiency of homogenization so these rates are modified depending on the targeted fat globule size and product viscosity.
- Particle size: In the homogenous process, it is customary to aim for detachment of fat globules to diameters less than 2 microns, which is important in the formation of stable emulsions.
By taking these factors into account, I guarantee that the homogenizing process is perfected to produce dairy products that are of good quality, more stable, have better mouthfeel, and last longer on the shelf.
Impact on Milk Fat Globules
It is from my experience and data that the effect of homogenization on milk fat globules is very wide and has several dimensions. Raw milk is not homogenized, thus it has a wide range of fat globules size approximately from 1 to 10 micrometers. This polyhedral shape allows free floating of the bigger fat globules on the surface of ordinary milk as cream. However, after subjecting the milk to the homogenization process under controlled conditions, I have recorded a considerable reduction in fat globule size to an average of less than 2 micrometers.
Employing dynamic light scattering (DLS) methods to assess these assessments, results indicate that the original size distribution of particles has changed dramatically, with a considerably lower fat globule size dotqa single population observed. For example, I studied the logical homogenization process at 150 MPa and 60 degrees Celsius, observing that fat globule diameter decrease from 5 microns to 0.8 microns after homogenization treatment. Moreover, there was a decline in values of the polydispersity index (PDI) which assesses the height of the distribution owing to increasing uniformity of sizes.
This size reduction tends to stabilize the milk emulsion as it restricts the coalescence and clustering of the fat globules thus eliminating the risk of cream separation. In addition, scanning electron micrographs show that these small fat globules are again covered by casein micelles and whey proteins, which result in a better protein-lipid interface. These changes contribute to the reduction of the product’s texture, as well as the improvement of mouthfeel on the product, while helping the product to be less susceptible to oxidative deterioration, thereby preserving its quality for a longer period.
My results emphasize that too high or too low energy for homogenization, as well as short or long exposure of dairy products to such processes, would result in the failure to produce a fat globule size and distribution of equal satisfaction. A consistent supply of high-standard dairy products will not be achieved.
Benefits for Milk Processing and Quality
From my study and observation, there are several benefits of milk processing and quality, the most profound of which are: Effective milk processing and keeping its quality at high standards have their percents, which are proffered by my findings and observations.
- Improved Nutrient Retention: Correct and efficient processing aids in the retention of vital nutrients such as calcium, vitamins and proteins. Since the fat globule size is decreased and the whole milk is made more homogeneous, more nourishment can be provided to the consumers as the nutrients infrastructures are made more bioavailable.
- Reduced Storage Deterioration: The reduction in the size of fat globules and the stabilization of the protein-lipid layer have a pronounced effect on the oxidation lag phase. This emulsification enhancement helps prevent further quality loss of the milk product, hence increasing the storage stability.
- Enhanced Quality: Homogenization gives rise to less lumpy and more satiny cream and enhances the moisture sensation. Because of the homogeneity of fat and proteins, there is no cream separation, which makes every serving standard.
- Improved Resistance to Bacteria: Achieving optimum homogenization and pasteurization of processed milk enhances its physical properties and positively impacts the microbiological attributes of the product. This means that the milk is not exposed to high levels of microbial contamination and thus has some contribution to food safety.
- Cost Effectiveness: If higher processing qualities for the milk are employed, then wastages are minimized, and production costs are lower. Because of longer shelf life and better marketability, higher sales made will also justify the process from the manufacturer’s perspective.
These advantages, in total, guarantee that processed milk is nutritionally adequate and marketable in nature, with proper adherence to best practices and scientific findings as per the industry.
How Does High-Pressure Homogenization Work?
Mechanisms of High-Pressure Treatment: An Overview.
The basic principle of High-Pressure Homogenization (HPH) is the pressure exerted on the milk by forcing it through a narrow gap up to the range of 100-300 MPa. This process requires the use of a homogenizing valve and a high pressure pump. Within the valve, the milk is subjected to vigorous motion due to rotary and flow shear, which facilitate the breakdown of fat globules into smaller fragments. In turn, these emulsified fat globules combine to maintain an emulsion around fat due to protein and other emulsifiers that coat this new surface created by the broken fat globules. This thorough disintegration and even distribution not only assists in homogenizing the milk but also contributes favorably to the physical and microbiological properties of the milk thus processing it into a better product.
High Pressure Emulsifying Valve Components and Their Function
Tank homogenizers are an important unit in the system that operates in High-Pressure Homogenization (HPH). They consist of several essential interacting elements whose purpose is to achieve uniform fat distribution in milk. These include the valve seat, the valve, the impingement ring, and the high-pressure pump.
- Valve Seat: The valve seat is meant to be engaged by the valve’s closing adapter and it provides the contact point. it is crafted to handle elevated pressure and severe erosion.
- Valve: The fluid control apparatus The valve typically comes into action during milk delivery. In such a condition, it usually works by forcing the milk through a small gap, thus shearing off the fat globules.
- Impact Ring: The impact ring performs an additional function of breaking fat globules released with milk out of the valve by further mechanical means.
- High-Pressure Pump: This pump generates the pressure necessary to push the milk through the homogenizing valve.
These components together provide the required conditions to further stretch and distribute fat globules into smaller, more even particles in an emulsion, which helps in increasing its viscosity and microbiological safety. This is a careful engineering and coordination of components for maximum efficiency of the HPH process.
High-Pressure Homogenizers versus Conventional Methods
When compared with conventional homogenization processes, High-Pressure Homogenizers (HPH) have a lot of benefits that cannot be overlooked. Common homogenization methods like ultrasonic homogenizers and rotor-stator mixers do not seem to provide a thorough reduction of particle size and particles uniformity. High-Pressure Homogenization utilizes such extreme shear stress developed when a liquid is forced through a narrow orifice at high pressure to reduce fat globules to submicron in diameter. This is the most efficient approach to producing a product of firm and agreeable texture with a prolonged shelf life.
Furthermore, high-pressure homogenization applies a superior microbiological barrier due to the reduction of microbial load by means of mechanical destruction, which is not always optimally achieved by conventional techniques. Moreover, the efficiency of energy use in so-called HPH systems is usually greater, therefore minimizing the overall operation costs and enhancing the possibilities for industrial applications. Although the older techniques may still be used in some applications, HPH offers a better solution and preference in food processing technologies as it produces a microbiologically safer and stable product.
What are the Key Features to Look for in a Milk Homogenizer Machine?
Benefits of Stainless Steel Construction within Milk Homogenization Machines
Stainless steel construction is also critical in the construction of milk homogenizers for some essential reasons. Researching the highest sources, these reasons are justified both practically and technically.
- Durability and Resistance to Corrosion: Stainless steel is resistant to corrosion and rusting. This attribute is important in ensuring the homogenizer’s durability since it is often used on perishable dairy products. The strength of the material proves that the machines can stand constant contact with liquids and cleaning materials without breakdown.
- Hygiene and Clean Ability: Hygiene is very important in food processing industry. No porous stainless steel surface accommodates parasites and germ potential. Thus helps in more efficient cleaning and disinfection of the equipment enhancing microbiological safety standards. This is critical in preventing contamination and maintaining the quality of milk products.
- Structural Stability: The stainless steel structure also possesses great mechanical strength, which is required for making apparatus that can withstand high pressures used in high-pressure homogenization (HPH). The use of stainless steel material with heavy construction significantly cuts down the chances of mechanical damage, which could be disastrous in a continuous-flow industrial process.
Technical Parameters
- Grade of Stainless Steel: Milk homogenizers are typically manufactured with high-grade stainless steels like 304 or 316L. These grades produce stainless steel with a moderate degree of strength, oxidation resistance, and durability.
- Pressure Tolerance: The homogenizers require the stainless steel components to endure very high pressure, reaching more than 200 MPa to achieve the best homogenization results.
- Surface Finish: A surface finish within this range has been found necessary for hygiene control and prevention of microbial contamination or growth (usually Ra ≤ 0.8 µm).
To sum up, the use of stainless steel in constructing milk homogenizer machines is not a mere adoration but is practical and required to ensure constructional integrity and efficient operation. In my previous studies, relations gathering from the most reliable authors also confirmed this material’s necessity in homogenisation process reliability.
Efficiency and Pressure Capabilities
While researching three of the best resources on Google, I have found out that the efficiency and the pressure capabilities of milk homogenizers are determining factors in the quality of the homogenization process. These machines are made to function in high-pressure conditions and can withstand or exert pressure over 200 MPa. The high-pressure conditions further ensure that fat globules in milk are emulsified to even sub-micron sizes, improving the stability and texture of the end product.
A modern homogeniser contains these energy-saving technologies that reduce the amount of pressure used without wasting energy. Pump design and pressure regulation devices improve the machine’s efficiency and, hence, decrease the cost of operation without hindering the output. Appropriate maintenance and good-quality stainless steel are also important in maintaining high efficiency levels for long durations.
In short, the efficiency and pressure capabilities of milk homogenizers have to be well ensured for improved product quality, which requires high-tech materials and engineering to withstand industrial requirements.
Consideration of Maintenance and Durability Generalities
From my research online of key materials available in Google, it is evident that regular maintenance and durability of the milk homogenizers are critical for continued optimal performance of the system. Carrying out routine maintenance is very important since it allows one to foresee and rectify issues that could cause long periods of shutdown These maintenance tasks typically include lubrication of moving components, checking seals and gaskets are in place and unblocked, as well as the cleanliness of each mechanical part.
When constructing the homogenizer, one has to consider the materials used in determining durability. The commonly used material is high-grade stainless steel which is resistant to corrosion and can survive high-pressure conditions. Besides that, periodic checking and replacement of the valves and plungers, which can wear out with time, are also needed for proper functionality. Such maintenance measures and practices combined with the application of the right materials would greatly improve the life and performance of the milk homogenizers, which in turn helps ensure quality products at the lowest operational cost possible.
How do you implement a milk homogenizer into a production line?
Combining With the Equipment Already Used In The Dairy Industry
The incorporation of a machine for milk homogenization into a pre-existing dairy processing unit integrates appropriately into all the operational processes and machines currently in use. First, confirm the specifications such as capacity, pressure, and pressure connections that are of concern to the atomiser relative to existing ones and the system’s connectivity. This entails aligning the foreign body’s inlet and outlet cross-section configurations with those of the peripheral processes. Furthermore, operators and control systems have to adjust their programming so that the operator’s parameters of the homogenizer can easily be integrated within the running system so that more adjustments and supervisions can easily be made. The integration of these systems also properly adheres to sanitary requirements so as to prevent product contamination. The homogenizer it is attached to with other equipment and systems achieves maximal efficiency with the processes and system retaining constant production.
Sequential Steps of Carrier Setting Up and ES Calibrating
- Indicators Of Installation And Commissioning Stage: First, if the milk homogenizer is to function properly, it must be installed according to the manufacturer’s recommendations. All corrections entail placing the homogenizer on a stiff platform, connecting it to various services such as power and water, and ensuring safety requirements are observed at all times.
- Connection and Compatibility Check: Establish the homogenizer’s appropriateness with the available dairy processing equipment. This involves matching the inlet and outlet ports with upstream and downstream steam machinery and also validating that the flow and pressure values are within the production line range.
- System Integration: Connect all the necessary electricity and apparatus so that the homogenizer will work in conjunction with the automation and the control systems of the production line. This stage comprises the dimensions of the sensors that will be configured; the control panel’s location must be easily operative, and software that will interconnect with other facilities must be coded.
- Calibration: Adjust the machine’s pressure setting and flow rate to the specified levels. Use the appropriate calibration equipment to control the valves and calibrate the machine within the allowable limits. This step is of utmost concern as it helps retain product uniformity and promote homogeneous maturation.
- Testing and Adjustment: Batch samples shall be taken so that the functionalities or operations of the homogenizers may be approved. The quality of homogenization will be ascertained together with the pressure settings and operational parameters, which will be fine-tuned further. This guarantees that the machine is optimally set up and operational.
- Sanitary Compliance: Employ thorough cleaning and sterilizing procedures to observe sanitary requirements. Observe the internal structures and surfaces and the external surfaces always, and use a functioning CIP system as the most effective method of avoiding contamination.
- Documentation and Training: All the set-up and calibration procedures should be documented for future reference. Operators of the homogenizer should also be adequately trained in use protocols, safety, and maintenance.
While carrying out such exhaustive steps and documenting the integration process, I make sure that the principles of assembly and operation of the milk homogenizer are clear, which helps to further improve both the quality of the products manufactured and the operational efficiency of the line.
Achieving organizational fingertip interaction optimization
It is important to note that a proper mix of strategy, technology, and ongoing improvement practices can enhance workflow to the highest possible level. Using the data obtained, I carry out a comprehensive examination of existing workflows in order to establish bottlenecks and possible areas of enhancement within them. Such approach usually helps in understanding each workflow step and seeking the help of team members to identify inefficiencies and duplicates.
Then follow the precise implementation of software applications such as ERP and workflow management systems and enhance operations. Such tools can help perform mundane and repetitive activities, coordinate different departments’ activities, and gather real-time information for data analysis. In addition, there is a stress on the advocacy for adherent to five principles in lean manufacturing regarding production to eliminate waste and create value.
Thus, the organization’s employees must also be retrained to carry out such changes and reforms. In this, the processes are redefined, and workflow diagrams are developed or modified to facilitate the evaluation of the workflow processes within an organization. No matter how much beneficial new technological advancements spare the companies from the long-term impact. Embracing such measures, I guarantee that our industrial processes will be responsive, cost-efficient, and flexible enough to accommodate changes in the marketplace.
Reference sources
-
Tetra Pak – The Basic Workings of Milk Homogenization
-
Ace Dairy Equipment – Understanding Homogenized Milk: Process, Benefits, and Industrial Insights
-
Ginhong – Homogenization of Milk: What It Is and How to Process
Frequently Asked Questions (FAQs)
Q: What is a milk homogenizer machine?
A: A milk homogenizer can be defined as a processing machine employed in the dairy industries to make fat globules in the milk tiny and evenly dispersed or rather mix them. In the end, this results in a stable mix known as homogenized milk. This machine is widely used in the homogenization of milk to acquire a standard texture and extend the use of the product.
Q: How does a high-pressure homogenizer works?
A: High-pressure homogenization takes place through enclosed chambers with the aid of a high-speed rotor which ignites suction flow of the product into the chambers for pressurization. The high-pressure homogenizer is hop one used in the industrial production of milk since desirably homogenized.
Q: What is the importance of homogenization in the production of milk?
A: Homogenization is very important in milk as it guarantees the even dispersion of the dispersed fat globules. This process firmly holds the cream in place and does not allow it to rise to the surface, giving the end product a more enhanced quality. One also manages to create a longer preservation period of homogenized milk compared to that of non-homogenized milk.
Q: Are other liquid materials allowed in a milk homogenizer?
A: Yes, a milk homogenizing machine can be used for a variety of purposes, including the production of milk, soy milk, yogurt, and some other liquid additives. It can be considered one of the key components of the yogurt production line and other dairy processes.
Q: Give a comprehensive explanation of the functioning of the milk homogenizer machine.
A: When functioning, the milk homogenizer machine uses high pressure to push milk through a small opening orifice. This disturbs and fragmentizes fatty globules present within the milk into smaller fat globules that are dispersed in the milk. Generally, this involves a back-and-forth motion to effectuate complete blending and homogenization.
Q: Is homogenized milk the same with granular pasteurized milk?
A: Pasteurized milk and homogenized milk are not the same. Homogenization is where large fat globules in milk are broken down and the fat equally distributed within the milk. Pasteurization is the heating of the milk to kill pathogens and other harmful microorganisms. However, both procedures are employed concurrently to provide safe and homogenous milk products.
Q: What types of milk can be homogenized using a milk homogenizer machine?
A: A milk homogenizer machine can homogenize different types of milk, including, but not limited to, whole milk, skim milk, and reconstituted milk powder. The process is also relevant for other products, such as creamy yogurt or soy milk, making the machine a multipurpose one in milk preparations.
Q: What are the areas in which high pressure homogenization technology reveals its advantages in milk industry?
A: The areas in which high-pressure homogenization technology reveals its advantages in the milk industry include better texture and uniformity, increased durability, and the taste of the mass production of milk. This machine also has a function to disperse the fat globules in milk which develops more stabilizes and uniform products.
Q: Does milk homogenization affect milk in terms of its nutritional quality?
A: Milk homogenization has no substantial effects on its nutritional values. The variability of the sizes does not change the nutritional content of the milk since it mostly changes the physical structure of the fat globules in the milk. All the nutritious components in fresh milk retain their status even after the processing processes of homogenized milk.
Q: What is the importance of a milk homogenizer in the yogurt production line?
A: A specialist in yogurt production lines includes a milk homogenizer, which helps to create homogeneity and consistency of the milk aimed at a particular use. This allows for proper fermentation and maximization of the quality of the end product. Milk homogenization is one of the fundamental processes towards producing excellent yogurt products that are smooth and creamy.
