Water, oil, and gas pipelines made from high-density polyethylene (HDPE) are now essential in many industries because of their strength, bendability, and non-corrosiveness. The focus of this article is on the material’s make-up, the environment it is in, and the operational stress that affects the performance of HDPE pipes. Also, this article analyzes the myriad uses of these pipes, showcasing their applications in water distribution, natural gas transmission, and industrial processes. Understanding these key elements enables users to make decisions about the performance, maintenance, and optimized lifetime of HDPE pipes.

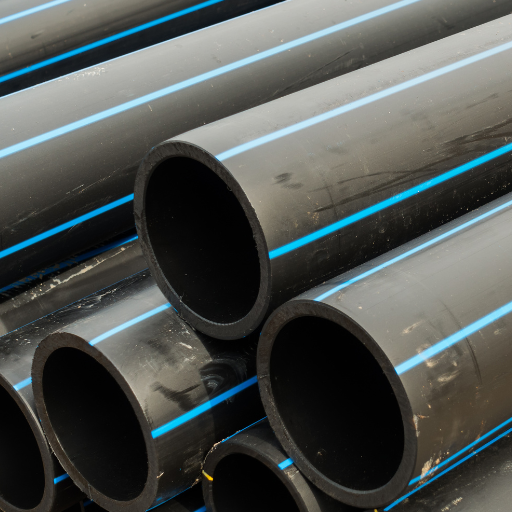

What factors influence the service life of HDPE pipes?
Material quality, working conditions, and environmental factors determine the lifespan of HDPE pipes. Manufactured goods such as the strength of the pipe, its resin grade, and the degradation process all contribute as well. Worked conditions like internal pressure, flow rates, and temperature will incite stress on the HDPE pipes, directly impacting it. Deterioration done in the long term harms the pipes through numerous environmental factors such as UV radiation, soil state, and chemicals. From the onset of design to proper installation and maintenance, HDPE pipes require utmost attention to maximize longevity.
In what manner does temperature influence the lifespan of an HDPE pipe?
Temperature directly impacts the performance of HDPE pipes by affecting their physical properties and overall structure. Increasing temperature reduces the tensile strength and pressure retention ability of HDPE pipes, which may result in faster material creep and stress relaxation. For example, the pressure rating of a regular PE100 pipe at 20 degrees centigrade may decrease by more than 50% at 60 degrees centigrade. On the other hand, at low temperatures, the HDPE pipe becomes stiffer, which makes it more amenable to brittle failure under sudden impacts or high stress. In this regard, the operational temperature range has to be matched to the specifications of the pipe, and allowance for thermal expansion or contraction should be made during installation to mitigate these effects.
What role does soil composition play in HDPE pipe durability?
The HDPE Pipes are durable due to the soil composition, which contributes towards the external loading conditions, corrosion potential, and thermal stability. For instance, dense, compact soils like clay or silt will apply larger external forces on the pipe and will increase the deformation or buckling chances if not sufficiently supported. Loose, granular soils like sand or gravel allow better drainage but, with no proper bedding, will create concentrated radiation stress. In addition, soil with high organic content or acidic pH can chemically deteriorate the upper area of the pipe, but under these extreme conditions, HDPE is resistant. When trying to seek balance for specific soil conditions, it is vital to guarantee the construction parameters including burial depth (typically 1.5 – 3meters with depending from area that it will be placed scale), allowable deflection limits (5% of the pipe diameter for flexible pipes), and reasonable backfill materials to be incorporated into the form to preserve the structure.
In what way does internal pressure and external loads affect the lifespan of HDPE pipes?
The structural integrity and mechanical performance of HDPE pipes are directly influenced by internal pressure and external loads, thus determining their lifespan. Internal pressure, often referred to as operating pressure, has the ability to stress relax and creep over time. Operating pressure is usually set at 10 or 16 bars at the most. Moreover, HDPE pipes are designed to sustain long-term internal pressures. Thus, their Pressure Rating (PN) is levers valued across safety factors of 1.25, 2.0, or more and designed under ISO guidelines. Otherwise, sustaining certain ratings will yield pipe deformation and rupture due to constant hoop stress.
Externally, soil pressure, traffic loads, groundwater levels and other factors impose additional forces on submerged HDPE pipes. Flexible pipes are built to withstand some buckling (up to 5% of their diameter), relying on surrounding soil compaction for load distribution. However, unchecked external forces coupled with poor bedding can place pipes in danger of buckling or localized stress concentration. During field inspections, it is important to make sure that soil modulus (E’) and burial depth (usually set at 1.5 meters but higher depending on load) follow the design to eliminate risks and maximize service life.
Can HDPE pipes really last 100 years?
The expected lifespan of HDPE pipes is primarily influenced by the materials’ quality, installation procedures, and the surrounding environment. Research and field studies suggest that HDPE pipes can last for over 100 years under the best conditions. Their resistance to corrosion, chemical degradation, and fatigue serves as the foundation for their durability. To achieve this lifespan, proper installation, the right soil, and compliance with design plans must be met. However, factors such as over-reding, inadequate backfilling, or extreme UV exposure can compromise structural integrity and reduce the lifespan of the pipes.
What evidence supports the 100-year service life claim for HDPE pipes?
Comprehensive evidence supports the claim that HDPE pipes can last for 100 years through thorough research, laboratory testing, and field studies. The outcomes of the laboratory experiments confirm the ability of the material to withstand slow crack growth and oxidation, which are crucial for the tube’s durability. Field data from installations over several decades also support these claims, revealing that with time, the pipes’ performance did not drop and degradation was barely noticeable. Guidelines from reputable organizations such as ASTM and ISO also support the claim through their testing procedures. Furthermore, the chemical inertness of HDPE piping gives it the ability to withstand external corrosive agents, making it ideal for long term use.
In what ways can a manufacturer estimate the long term performance of HDPE pipes?
Combining industry norms with accelerated testing, material examination, and modeling helps manufacturers predict the long-term performance of high-density polyethylene pipes. Some critical testing methods include administering the Notched Pipe Test (NPT) to evaluate resistance to slow crack growth and the thermal oxidation resistance through the oxidation induction time (OIT) test. Additional Hydrostatic Design Basis (HDB) exams check the ability of the pipes to endure continuous internal pressure over time while Environmental Stress Crack Resistance (ESCR) testing measures the performance under stress in harsh conditions. All of these are executed under controlled conditions designed to simulate real life elements for a long time.
To assess performance in various operational environments, accompanying computational models are applied, considering specific factors such as temperature, internal pressure, and other chemicals. Such predictive methods allow for compliance with standards like ASTM D2837 and ISO 9080 that govern the evaluation of pipe durability and stress ratings. Using the combination of empirical tests and theoretical models, manufacturers are able to accurately predict the life span of HDPE pipes even in tough conditions.
Limitations of the 100-year expectation on service life.
The prediction about HDPE pipes lasting a century is based on ideal conditions that may not be available in practical settings. The service life expectation of a product may change because of high temperatures, chemicals, mechanical forces, or improper installation, which could all cause the deterioration of materials. Furthermore, the long-term expectations are built off a last guess and will not accommodate for any future unexplained changes on a systemic or operational scale over repeated decades. The reality is that an accurate estimate of service life largely relies on proper compliance with installation and maintenance supervision alongside environmental evaluations.
How does HDPE pipe compare to other materials in terms of service life?
Usually, HDPE pipes outlast most conventional materials, including concrete, ductile iron, and PVC, in terms of service life. Their endurance to corrosion, chemical degradation, and abrasion provides HDPE pipes an advantage in challenging conditions such as very acidic or alkaline soils. While core strong ductile iron pipes may offer comparable strength, they are more prone to corrosion without protective coatings. On the other hand, concrete pipes are prone to sulfate attack or freeze-thaw cycles, particularly in harsh climates. Likewise, while PVC pipes are light, cheaper, and easier to use, they are harmful temperature sensitive and mechanically impact compared to the flexibility and resilience of HDPE pipes. All in all, the superior performance and reliability of HDPE pipes in demanding conditions is made possible due to their durability and adaptability.
What advantages does HDPE have over traditional pipe materials?
Due to their remarkable physical and chemical properties, HDPE pipes have some advantages to traditional materials. First of all, HDPE pipes’ chemical resistance is outstanding, which makes them suitable for a myriad of fluids transmission, including hazardous materials, without any leaching or degradation. Their flexibility and ductility also diminishes the probability of cracking or breakage under different loads, seismic activities, or thermal expansion, which is a concern for concrete and PVC materials.
Looking at it from a hydraulic performance angle, HDPE pipes are missing a vital internal surface(with a typical Hazen-Williams C value of 150-155), that leads to friction loses which are a crucial factor for elevated distance fluid transmission. Furthermore, they have low scaling, biofilm, and sedimentation so they can work for a long time without consistent performance degradation. Because of its weight, HDPE is easier to handle and install, which reduces the costs of labor and equipment when compared to ductile iron or concrete.
According to the latest reports, with proper engineering designs, High Density Polyethylene (HDPE) may work efficiently with operating pressures ranging from 100-335 PSI, based on various criteria, for example, type (e.g., PE-63, PE-80, PE-100), grade, and wall thickness. Moreover, they can endure extreme temperatures from -40°F to 140°F. In addition, the performance of the HDPE piping system helps to fuse weld joints into an entire leakproof system, removing all weak points associated with mechanical fittings, thus enhancing the long-term integrity and reliability of the system.
These attributes make HDPE suitable for industrial, municipal, and environmental applications in regions where other materials fail because of weak systems and poor maintenance.
How does HDPE pipe withstand chemical corrosion and ultraviolet rays?
Due to their non-polar composition, HDPE pipes resist chemical corrosion exceptional. As a result, they are unreactive to a wide range of acids, alkalis, and organic solvents, so they can be used in freeing wastes and industrial fluids. This chemical stability is a consequence of the high crystallinity of the polymer which reduces the level of aggressive chemicals that can permeate.
In the case of UV resistance, pipes made of high-density polyethylene (HDPE) are manufactured with 2-3% carbon black by weight. This carbon black carbon black functions as a UV stabilizer because of its ability to absorb and disperse harmful ultraviolet radiation. It stops the polymer from degrading which may cause cracking or the material becoming brittle from too much sun exposure. In addition, coatings which are UV resistant may be applied where the solar intensity is exceptionally high. Combining chemical and UV resistance ensures HDPE pipes remain functional in extreme conditions for longer periods.
Are there any applications where HDPE pipe is not suitable?
- High Peaks of Temperature
For applications with consistent high temperatures higher than 140 fahrenheit or 60 celsius, HDPE is not appropriate. The polymer becomes flexible and loses its mechanical strength, and structural integrity leading to deformation failure when heat applied increases pressure.
- Systems operating with Extreme Pressure
Though HDPE pipes are usable in systems with moderate pressure ranges, they do not tend to perform well in systems operating with extremely high pressures, particularly when the pressures exceed the pipes’ specified pressure rating. These applications greatly rely on materials with a high tensile strength, such as steel or reinforced composites.
- Intensely Erosive Environments
When utilized for the transportation of materials that are intensely erosive in nature, like slurries and sharp particulate matter, HDPE pipes tend to incur a considerable amount of abrasion. Such activities lead to obliteration of materials over time and in the long run, leads to the degradation of the efficiency and lifespan of the HDPE pipes.
- Use of Strong Oxidizing Agents
Albeit very resistant to many chemicals, HDPE is incompatible with strong oxidizing agents such as concentrated nitric acid and highly chlorinated solutions. The aforementioned oxidizing agents can break down polymer chains resulting in negative impacts on the integrity of the pipes.
- Environments Susceptible to Fire
Unlike metals and ceramics, HDPE is thermoplastic and so, has a relatively higher melting point. Because of high heat exposure, HDPE is not suitable in use in regions where there is a high need for fire resistance due to the risk of burning or melting.
- Bear Load Structurally
When there is the need for a significant amount of stiffness and structural load bearing, using HDPE pipes is not ideal due to the reduced rigidity and increased versatility. Steel and ductile iron are generally recommended in these situations.
What installation practices ensure maximum HDPE pipe service life?
To increase the service life of HDPE pipes, they should be properly installed. First, the trench needs to be homogeneously prepared so that the phase is placed on a bedding layer that will support the pipe and reduce its stress points. The backfill should be performed with appropriate materials; sharp objects and any other rubble that can harm the pipe should be avoided. Second, joining methods which include butt and electrofusion, are leak-free and very strong. It is crucial to safeguard temperature balance during installation to avert issues with thermal expansion and contraction. Joint alignment is also important to avoid overload propagation and failure. Additionally, proper support in areas above the ground, as well as moderate bending, helps minimize mechanical stress, which will improve the service life of the pipes.
In what way does correct bedding and backfilling influence the life span of an HDPE pipe?
Correct bedding and backfill increases the service life of HDPE pipes. Proper bedding reduces the chances of pointing pressure and localized strain on the pipe walls by minimizing the risks of uneven support. Furthermore, if the backfill material is chosen wisely and compacted appropriately, it also shields the pipe from external forces and displacement due to soil movements or other sharp objects. All these practices combined serve to protect the structural components of the pipe and greatly increase its resistance to external pressures throughout its entire service life.
How does fusion welding impact the service life of an HDPE pipe?
The service life of HDPE pipes is greatly increased due to fusion welding, for it forms a joint that bears the same strength and durability as the pipe itself. There is no use of mechanical joints or connectors, which are typical fail points, thereby significantly increasing the elbow’s life. Aibe cutting sawed juncture increases the risk of fractures, through putting holes under pressure. Additionally, there is no risk of leakage, infiltration, or under pressure, joint weakening. Moreover, joints made by fusion welding can easily cope with high mechanical and thermal stresses, which ensures long service life dependable performance at elevated temperatures.
In what ways can installers reduce impact of damages while performing the installation of HDPE pipes?
Minimizing damage potential during the installation of the pipes can be achieved through the determination of industry-wide practices. First, pipes need to be taken care of not to get scratches, deformations inflicted upon them, or gorges. Additionally, pipes should not be pushed beyond reasonable stacking limits. Bedding for the trench should be smooth and properly prepared so as to reduce the risk of uneven stress points on the pipe. Moreover, the correct fixtures should be used to lift and lower the pipes into an appropriate trench to avoid mechanical damage. Inserting sand padding, or gorges, also shields the pipe from outside forces. Lastly, avoiding excessive installation pulling and bending helps minimize the risk of longterm pipe failure.
How do environmental factors impact HDPE pipe service life?
The service life of HDPE pipes is greatly influenced by environmental factors, mainly because they alter their physical & chemical properties over time. If pipes are not appropriately stabilized with UV-resistant additives, surface degradation may occur due to exposure to UV radiation. Elevated temperatures might speed up the material’s natural aging process, but extremely low temperatures make the material more brittle and prone to cracking. Furthermore, the exposure to aggressive soils and other corrosive chemicals can adversely affect the performance and structural integrity of the pipes. These risks can be reduced with effective installation and maintenance. Additionally, the operational life span of HDPE pipes can be increased with the usage of protective coatings and liners.
What impact do severe weather conditions pose on buried HDPE pipes?
Severe weather conditions can greatly affect soil thermal expansion and stability, as well as buried HDPE pipelines. During extreme heat, there is overthermal expansion, which causes the joints to stress, misalign, or both excessively. When the temperature drops during extreme cold weather, the pipe material becomes more rigid, resulting in a loss of flexibility. This makes the pipes much more prone to fractures under voltage. The other risk posed by severe weather conditions is posed by heavy rainfall and soil flooding, along with erosion of the soil that provides support and proper alignment for the pipeline. The stability of the backfill material and allowance for thermal expansion are prerequisites for proper engineering design, which reduces these weather-related consequences.
How does HDPE pipe perform in high moisture environments?
Regarding sub-merging HDPE pipes into water bodies, water intake does not occur and corrosion is entirely absent. The non-reactive attributes of the material prevent any form of water or chemical-induced degradation. Water entry blockage (infiltration) also adds an advantage to materials like drainage systems and water distribution vessels. Structures made from these submergible pipes are said to be HDPE, which stands for high-density polyethylene, and benefit from having very low heat conductivity of 0.41 to 0.52 W/mK. The harshest waterlogged conditions do not affect the pipe’s durability either, due to its tensile strength of 20-37 MPa, and the ability to stretch above 600 percent without breaking. Together, this makes the material fracture resistant and flexible. For optimum performance and durability, proper installation aids in ensuring weld joint integrity.
Is there an adverse effect on service life for HDPE pipe when freeze-thaw cycles are employed?
Yes. HDPE’s service life greatly depends on its material, enabling the cyclic freeze-thaw process to be utilized. HDPE pipes have very high flexibility and elasticity, which resists cracking when water in the pipes freezes and expands. In addition, HDPE has a very low thermal conductivity ranging between 0.41 and 0.52 W/mK. Such performance limits heat loss, therefore, the risk of the external temperature inconsistency affects performance. HDPE also has high elongation at break (over 600%) which proves that it can withstand the stress associated with freeze-thaw cycles.
Moreover, the pipes demonstrate a high resistance to brittle fractures at low environmental temperatures. The impact strength at these temperatures is sufficient, and so is the reliability. Non-restrained installation conditions movement of system parts together with thermal expansion or contraction also improves their resistance. The coefficients of thermal expansion of HDPE are around 1.8 x 10^-4 mm/mm/°C, which is a fair engineering value for the designed systems because the temperature range is manageable. So, these properties together make HDPE very effective in cold environment regions.

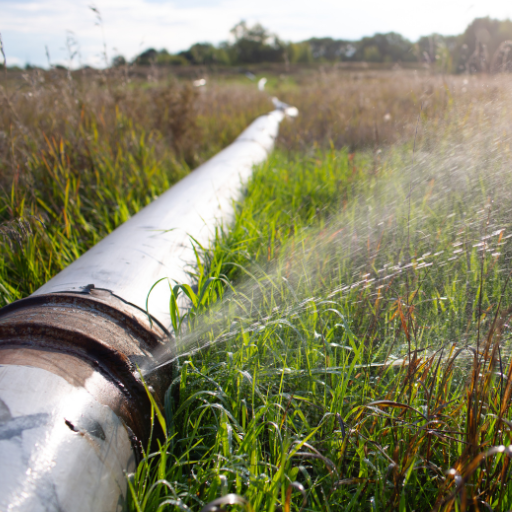

What are the best practices for maintaining HDPE pipes to maximize service life?
Consistent inspections and maintenance of HDPE pipes are crucial to maximize their service life. Ensure cleaning is thorough so that all residues or deposits that may cause a blockage or damage are removed. Monitor and control operating pressure and temperature, so that overburdening the material is avoided. Properly using appropriate methods, such as jointing during pipe installation, reduces stress points and possible failures. When pipes must be exposed to the outdoors for lengthy periods, cover or coat the pipes so that direct UV radiation does not damage it. During the installation phase, ensure rigorous quality checks are done, and during regular maintenance inspections, check all the fittings, connections, and anchoring for signs of issues. Finally, ensure the guidelines from the manufacturer are followed and the accepted industry standards for long term structural and functional integrity.
How frequent should inspections be conducted for HDPE pipe systems?
HDPE pipe systems should, at a minimum, be inspected yearly to check for any structural or operational issues. For more at-risk applications or systems that operate under extreme conditions, inspecting at a quarterly or biannual schedule may be warranted. Worn or damaged joints, connections, and any other critical areas should always be the focus during an inspection. Issues that may go unnoticed are often hidden beneath the surface, but routine pressure and flow monitoring can bring them to light. Last, it is always ideal to adhere to industry-specific guidelines and the manufacturer’s recommendations for the optimal inspection frequency of the system.
Which techniques are deemed safe when cleaning HDPE pipes.
Techniques like non-abrasive scrubbing, mild detergent application, and flushing with clean water are safe when cleaning HDPE pipes. Strongly aggressive acids or chemicals, or even inflicting abrasive force onto the pipe, should be eliminated as options because they can damage the pipe’s structure over time. For the removal of biofilm or residue, a mild vinegar dilution or enzyme cleaner can also be used, as along as the pipe manufacturer permits it. Even the use of high-pressure water jetting can be considered if more is needed to be done. Remember to properly rinse the pipes afterwards to ensure there are no cleaning residues left that can damage the system’s functioning.
How can operators prevent and resolve the issues of cracking found in HDPE pipes?
Operators can prevent and resolve the cracking of HDPE pipe issues through a combination of material choice, installation methods, and positive maintenance including routine check-ups. Using the appropriate grade of HDPE materials that are UV-resistant, stress-resistant, and oxidation-resistant is very important. Proper installation techniques include avoiding the extreme bending or overloading of pipes and following best practice procedures to reduce pipe stress. Performing regular inspections and checking for early signs of fatigue or stress environmental cracking is critical to sustaining HDPE pipes. In addition, removing possible sources of chemical exposure while controlling operating pressure and other thermal limits will greatly improve the life span of HDPE pipes.
Reference sources
Frequently Asked Questions (FAQs)
Q: What is the typical service life of HDPE pipes?
A: HDPE pipes are known for their longevity, with many manufacturers and industry experts citing a potential service life of up to 100 years. This extended lifespan is due to the material’s durability, resistance to corrosion, and ability to withstand various environmental factors. However, the actual service life can vary depending on installation conditions, soil and traffic loads, and other anticipated service conditions.
Q: How does HDPE corrugated pipe differ from regular HDPE pipe?
A: HDPE corrugated pipe features a ribbed or wavy exterior profile, which provides additional structural strength while maintaining flexibility. This design makes it particularly suitable for drainage applications and installations where soil movement may occur. Regular HDPE pipe, on the other hand, has a smooth wall and is typically used for pressure applications such as water mains or gas distribution.
Q: What factors are considered when predicting service life for HDPE pipes?
A: Predicting service life for HDPE pipes involves considering various factors, including the material used, installation conditions, soil and traffic loads, temperature, pressure, and potential exposure to chemicals. The rate process method is often used to estimate long-term performance. Additionally, factors such as UV exposure for outdoor applications, moisture levels for buried pipelines, and potential contaminants in the surrounding environment are all taken into account.
Q: How does the density of polyethylene affect HDPE pipe performance?
A: The density of polyethylene directly impacts the performance of HDPE pipes. Higher density polyethylene (HDPE) offers increased strength, stiffness, and chemical resistance compared to low-density polyethylene. This makes HDPE pipes more suitable for high-pressure applications and harsh environments. However, higher density can also result in reduced flexibility, which may affect installation methods, particularly in trenchless pipe applications.
Q: Can HDPE pipes be recycled at the end of their service life?
A: Yes, HDPE pipes can be recycled at the end of their service life. The plastic pipe industry has made significant strides in recycling technologies over the past several years. HDPE is a thermoplastic material, which means it can be melted down and reformed into new products. This recyclability contributes to the material’s sustainability and reduces its environmental impact compared to some traditional piping materials.
Q: How has the manufacture of HDPE pipes evolved over time?
A: The manufacture of HDPE pipes has evolved significantly, with advancements in extrusion technology leading to improved pipe quality and production efficiency. Modern HDPE pipe extruders and extrusion machines can produce pipes with more consistent wall thickness and better overall performance. Additionally, innovations in resin formulations have resulted in HDPE pipes with enhanced properties, such as increased resistance to slow crack growth and improved long-term strength.
Q: What are some common applications for HDPE sheeting in relation to piping systems?
A: HDPE sheeting is often used in conjunction with HDPE piping systems for various applications. It can be used as a protective liner in containment areas, as a moisture barrier in underground installations, or as a component in fabricated fittings. HDPE sheeting is also used in the manufacture of large-diameter spiral wound pipes, where it is wound around a steel reinforcement to create strong, corrosion-resistant pipes for infrastructure projects.
Q: How do installation methods affect the expectancy of HDPE pipes?
A: Installation methods play a crucial role in the expectancy of HDPE pipes. Proper installation techniques, including appropriate bedding, backfill, and compaction, can significantly extend the service life of HDPE pipes. Trenchless installation methods, such as horizontal directional drilling or pipe bursting, can reduce surface disruption and potentially increase the lifespan of the pipe by minimizing damage during installation. However, improper installation can lead to issues such as excessive deflection or splitting, which may reduce the pipe’s service life.
